Baofeng 2meter radio UV-5RIII

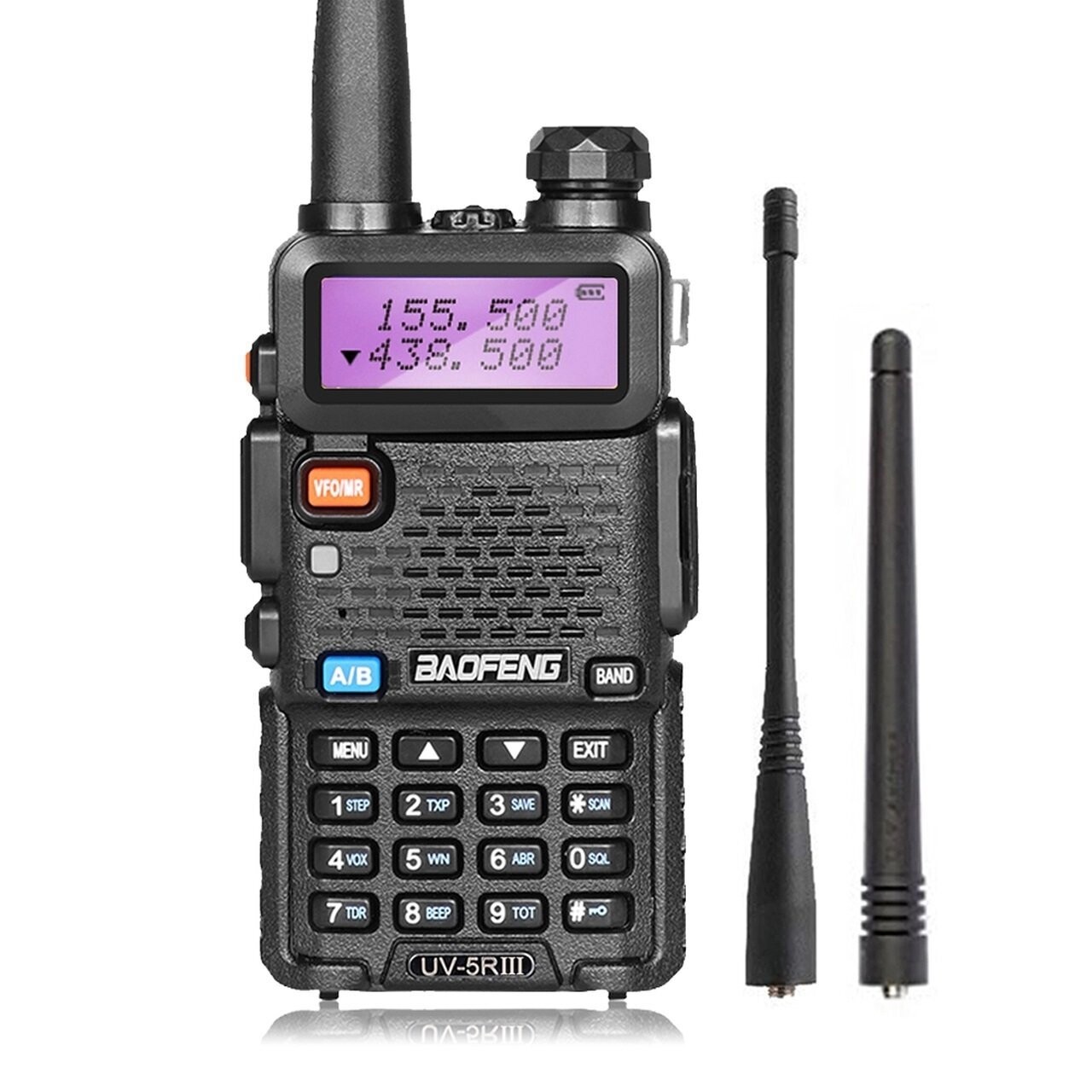

BAOFENG UV-5R III
The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF Tri-Band Two-Way Radio Features
>Earpiece / mic type : Kenwood Plug type
>Antenna : SMA -Female
>Frequency Range: 136-174 / 220-260 / 400-520MHz
>Dual-Band Display, Dual Freq. Display, Dual-Standby
>Output Power: 4 /1Watts
*128 Channels 50 CTCSS and 104 CDCSS
*Built-in VOX Function
*1750Hz Brust Tone
*FM Radio (65.0MHz-108.0MHz)
*LED Flashlight
*Large LCD Display
*High /Low RF Power Switchable
*25KHz/12.5KHz Switchable
*Emergency Alert
*Low Battery Alert
*Battery Saver
*Time-out Timer
*Keypad Lock
*Monitor Channel
*Channel Step: 2.5/5/6.25/10/12.5/25KHz

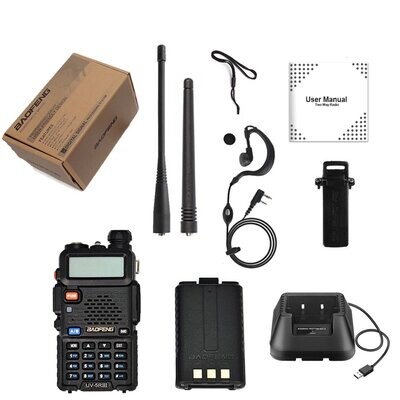

Package Include:
-1 x Baofeng UV-5R III Tri-band Black Walkie Talkie
-1 x 7.4V 1800mah Original Baofeng Li-ion Battery Pack
-2 x Antenna
-1 x Hand Strap
-1 x Belt Clip
-1 x ENG Manual
-1 x Desktop Charger with USB Connector Male
-1 x PTT Earpiece for free
| Item number | UV- 5R III |
| General | |
| Frequency Range | 65-108MHz(FM Receive only) |
| 136-174MHz / 220-260MHz / 400-480MHz (TX/RX) | |
| Channel No. | 128 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain Dual Band antenna |
| Antenna Impedance | 50ω |
| Operating Voltage | DC 7.4V |
| Mode of operation | Simple or semi-duplex |
| Dimensionï¼W x H x Dï¼?/span> | 100 x 52 x 32 mm |
| Weight | 250g including battery & antenna |
| Transmitter | |
| Output power | 4W / 1W (Max 5W) |
| Modulation Mode | 16kφF3E / 11kφF3E |
| Maximum deviation | ¼ kHz(Wide) / ¼-.5kHz(Narrow) |
| Spurious Radiation | ¼ μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
